Core Generator (version 1)

Task:

Redesign previous RS232 project in the following way:

The system should buffer data received from the RS232 port. After the number of characters ‘row_max’ has been collected the system should print them back to the RS-232 port in pseudo-graphic form (using the printed character as a pixel).

Besides, the system should buffer input characters coming from the RS232 port in the printout phase. The length of the buffer should be 64 characters. Buffer overflow should be signaled by LD0 LED (the LED should illuminate during overflow condition). The RS232 port parameters should be identical to those used in the previous exercise, also the RS232 port monitoring function (using the LED display) should remain intact. ‘row_max’ parameter should be easily modifiable (for example defined as a constant) and should accept values from 2 to 15.

The sample printout of several lines is presented below (row_max=8):

bbb ddd fff hhh

bb dd ff ff hh

bb dd ff f hh

aaaa bbbbb cccc dddd eeee ff ggg gg hh

aa bb bb cc cc dd dd ee ee fffff gg gg hhhhh

aaaaa bb bb cc dd dd eeeeee ff gg gg hh hh

aa aa bb bb cc dd dd ee ff gg gg hh hh

aa aa bbb bb cc cc dd dd ee ee ff ggggg hh hh

aaa aa bbb bb cccc ddd dd eeee ffff gg hhh hh

gg gg

gggg

AA BBBBBB CCC DDDDD EEEEEE FFFFFF GGGG HH HH

AAAA BB BB CC CC DD DD EE E FF F GGG GG HH HH

AA AA BB BB CC C DD DD EE FF GG HH HH

AA AA BB BB CC DD DD EE E FF F GG HH HH

AA AA BBBBB CC DD DD EEEE FFFF GG HHHHHH

AAAAAA BB BB CC DD DD EE E FF F GG GGG HH HH

AA AA BB BB CC C DD DD EE FF GG GG HH HH

AA AA BB BB CC CC DD DD EE E FF GGG GG HH HH

AA AA BBBBBB CCC DDDDD EEEEEE FFFF GGGG HH HH

11 2222 3333 44 555555 666 777777 8888

111 22 22 33 33 444 55 66 77 77 88 88

1111 22 33 4444 55 66 77 88 88

11 22 33 44 44 55 66 77 88 88

11 22 3333 44 44 55555 66666 77 8888

11 22 33 4444444 55 66 66 77 88 88

11 22 33 44 55 66 66 77 88 88

11 22 22 33 33 44 55 55 66 66 77 88 88

1111 222222 3333 4444 5555 6666 77 8888

The characters which codes are below 32 or greater than 126 should be printed using asterisks (*) as pixels. Do not implement control functions of those characters (like Line Feed, Carriage Return, etc.). The example of a line containing characters which codes are below 32 is presented below:

**** **** ***** ***** ***** ***

* * ** ** *** * * ******* ** ** * *****

**** ** ** ** * * * * * ** * ** ******* *** *****

* ** ** ** * * * ******* ******* ***** ***

* **** **** * * ******* ******* ******* *******

* ** ** ** * *** * ** ** ******* ***** *******

** ****** ** ** * * * *** *** ***** *** *****

*** ** ** ** * * ******* *** * *

** ** **** ***** ***** * *****

Ports’ usage:

• clk_i – 50MHz clock input,
• rst_i – asynchronous reset input,
• RXD_i – RS232 data input,
• TXD_o – RS232 data output,
• ld0 – output of FIFO buffer overflow signal (LED LD0),
• led7_an_o – output to LED-display anodes,
• led7_seg_o – output to LED-display segments.

For the project implementation two functional modules generated by the Core Generator application will be needed. The ROM (Read Only Memory) will provide characters’ fonts. The FIFO memory will be used as a 64-character input buffer. The character definitions (8x16) can be downloaded here: chargen.coe

ROM module generation:

Choose: Project -> New Source

This will open a new window Select Source Type in which choose:
IP (CORE Generator & Architecture Wizard).
Enter the the file name of a new component (generated by Core Generator), for example: char_mem and click Next:

The window ”Select IP” for new component choice will be opened:

In this window choose Block Memory Generator v2.8 and click Next. The summary window will show up: New Source Wizard – Summary. It must be acknowledged by clicking Finish.

Next the Core Generator starts and the new window for component configuration is opened:

In this window (1/4) change Memory Type to Single Port ROM.
You can use View Data Sheet button (in the down left corner) to open detailed documentation of the configured component.

Then click Next.

In this window (2/4) change Read Width to 8 (characters are defined with a resolution of 8 pixels in the horizontal direction) and Read Depth to 4096 (there are 256 characters defined, and each occupy 16 bytes in the memory).

Then click Next.

In this window (3/4) mark Load Init File and enter the path to the file chargen.coe with characters’ definitions (you can make this quickly by using the Browse button).

Then click Next.

In this window (4/4) nothing should be changed. But, it is worth to remember helpful project summary information (Information field) and the block symbol of the designed component. The most important information is: Total Port A Read Latency (From Rising Edge of Read Clock): 1 Clock Cycle(s)

Acknowledge by pressing the Finish button.

The component generation will begin – please wait a moment.

After successful generation the component will be added to the list of project files.

Below the definition of a character in the generated ROM is presented: (using the letter R as an example):

Address	b7	b6	b5	b4	b3	b2	b1	b0
ascii*16+0	0	0	0	0	0	0	0	0
ascii*16+1	0	0	0	0	0	0	0	0
ascii*16+2	0	1	1	1	1	0	0	0
ascii*16+3	0	1	0	0	0	1	0	0
ascii*16+4	0	1	0	0	0	1	0	0
ascii*16+5	0	1	0	0	0	1	0	0
ascii*16+6	0	1	0	0	0	1	0	0
ascii*16+7	0	1	1	1	1	0	0	0
ascii*16+8	0	1	0	1	0	0	0	0
ascii*16+9	0	1	0	0	1	0	0	0
ascii*16+10	0	1	0	0	1	0	0	0
ascii*16+11	0	1	0	0	0	1	0	0
ascii*16+12	0	1	0	0	0	1	0	0
ascii*16+13	0	0	0	0	0	0	0	0
ascii*16+14	0	0	0	0	0	0	0	0
ascii*16+15	0	0	0	0	0	0	0	0

Address – the address in the ROM.

ascii – the ASCII code of a printed character.

The address for the ROM can be easily generated by concatenating the 8-bit vector of ASCII code with the 4-bit vector of line number of character (0-15) using the & operator. Remember that after printing the line you should send two control characters: CR (code: 13) and LF (code: 10) to make the cursor go to the new line.

For easy component instantiation files with *.vho extension are created. They contain the template of component declaration and the example of how to make the instance of the component. You can easily include those files in the project files.

A sample VHO file:

-- The following code must appear in the VHDL architecture header:
------------- Begin Cut here for COMPONENT Declaration ------ COMP_TAG
component char_mem
port (
clka: IN std_logic;
addra: IN std_logic_VECTOR(11 downto 0);
douta: OUT std_logic_VECTOR(7 downto 0));
end component;

-- Synplicity black box declaration
attribute syn_black_box : boolean;
attribute syn_black_box of char_mem: component is true;
-- COMP_TAG_END ------ End COMPONENT Declaration ------------
-- The following code must appear in the VHDL architecture
-- body. Substitute your own instance name and net names.
------------- Begin Cut here for INSTANTIATION Template ----- INST_TAG
your_instance_name : char_mem
port map (
clka => clka,
addra => addra,
douta => douta);
-- INST_TAG_END ------ End INSTANTIATION Template ------------
-- You must compile the wrapper file char_mem.vhd when simulating
-- the core, char_mem. When compiling the wrapper file, be sure to
-- reference the XilinxCoreLib VHDL simulation library. For detailed
-- instructions, please refer to the "CORE Generator Help".

The text in red font should be copied to the local signal definition area. The text in blue font should be copied to the architecture area (of course the connected signals’ names and the instance name should be changed as needed). Then the icon representing the new component should be automatically moved to the proper place in the project’s hierarchy.

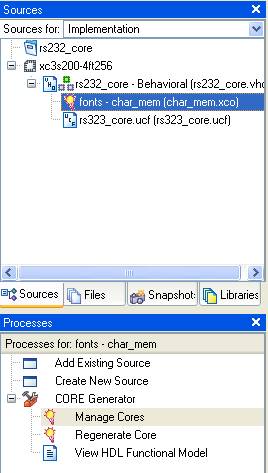

Modification of component’s parameters and its regeneration is possible using the icons: Manage Cores i Regenerate Core presented below:

Generation of FIFO memory module:

To generate the FIFO module proceed as follows:

Choose: Project -> New Source

In the window Select Source Type choose: IP (CORE Generator & Architecture Wizard).
Enter the file name for a new component, for example: fifo_mem and click Next:

Next window will be opened - Select IP:

In this window choose Fifo Generator v4.4 and click Next.
Then the summary window appears: New Source Wizard – Summary.
You should acknowledge by pressing Finish.

Then the Core Generator starts and the component configuration widow is opened:

In this window (1/6) choose option: Common Clock (CLK) – Block RAM.
Use View Data Sheet button to see the complete and detailed documentation of the core.

Then click Next.

In this window (2/6) change Write Width to 8, Write Depth to 64 (assumed FIFO capacity) and Read Width to 8.
Please notice the information on the bottom of the page (it is generated based on the options previously set and is important for FIFO reads):

Read Latency (From Rising Edge of Read Clock): 1

Then click Next four times (leave the options of the next 4 windows unchanged). Last window (6/6) should be printed like below:

It is worth to remember the helpful summary of the properties of the designed component (field Information).

Confirm it by pressing Finish.

The component generation procedure starts – please wait a moment.

Now you have to instantiate the component in your project using *.vho file (the procedure is similar to the one described for the previous ROM component).

Important information about the FIFO component can also be found in UG175
document.

Circuit verification

The circuit has to be verified experimentally by programming the FPGA on the prototype board. You can also perform functional simulation if you need. After the FPGA is programmed check the basic functionality of the system: print some lines on the terminal and check the buffer overflow detection (by keeping any key pressed for about 30 seconds). For testing use MINICOM terminal emulation program (MINICOM is by default configured as follows: 9600bps, 8 data bits, 1 stop bit, no parity). Show the results to the instructor.


Transmission and reception of data in the RS232 standard:

Transmission and reception of data in the RS232 standard is done in a serial manner, separately on two data lines (one data line for direction to the device and one data line for direction from the device). When no transmission is present, the signal on the line is high (logic level ‘1’). The start of the transmission is initiated by the falling edge of the input signal followed by the so-called ‘start bit’ (logic level ‘0’), which should last for a period equal to the reciprocal of the baud rate, in our case 1/9600 [seconds]. All subsequent bits are sent with the same timing. The data is transmitted in series starting from the least significant bit (D0) up to the most significant bit (D7). Later there is a parity bit, which is a result of a logical XOR operation on D0-D7 data. The parity bit is optional and does not occur in the case of this exercise. The termination of the transmission is signaled by the stop bit (logic level ‘1’).

The sample transmission of the code: 01010011 is presented below:

Fig. 1. Sample transmission of the code: 01010011 using the RS-232 (9600 bps, 8-bits, 1-stop, no parity).

Additional information about RS232 standard:
http://en.wikipedia.org/wiki/RS-232

UCF file for the exercise, Digilent Spartan-3 board, Spartan-3 3S200 FT256-4:

# Clock:
NET "clk_i" LOC = "T9" ; # 50 MHz clock
# Push-buttons:
NET "rst_i" LOC = "L14" ; # pressed high BTN3
# RS232:
NET "TXD_o" LOC = "R13" ; # RS 232 TXD
NET "RXD_i" LOC = "T13" ; # RS 232 RXD
# Seven-segment LED display:
NET "led7_an_o<3>" LOC = "E13" ; # leftmost digit, active low
NET "led7_an_o<2>" LOC = "F14" ; # active low
NET "led7_an_o<1>" LOC = "G14" ; # active low
NET "led7_an_o<0>" LOC = "D14" ; # rightmost digit, active low
NET "led7_seg_o<7>" LOC = "E14" ; # segment 'a', active low
NET "led7_seg_o<6>" LOC = "G13" ; # segment 'b', active low
NET "led7_seg_o<5>" LOC = "N15" ; # segment 'c', active low
NET "led7_seg_o<4>" LOC = "P15" ; # segment 'd', active low
NET "led7_seg_o<3>" LOC = "R16" ; # segment 'e', active low
NET "led7_seg_o<2>" LOC = "F13" ; # segment 'f', active low
NET "led7_seg_o<1>" LOC = "N16" ; # segment 'g', active low
NET "led7_seg_o<0>" LOC = "P16" ; # segment 'dp', active low
# LD0 LED:
NET "ld0" LOC = "K12" ; # high on
#
